eLite Electric Outboard Motors

Ideal for kayaks, canoes, paddle boards, dinghies and inflatables.

500WNew
500W 5.6 Miles Range Lightweight 6.7 kg / 14.7 lbs

Introducing eLite Electric Outboard Motors

The ePropulsion eLite 500W electric outboard redefines your on-water experience with innovative features and commitment to sustainability. Designed to be the most compact and lightweight electric outboard in its class, it is an easy-to-use alternative to small internal combustion engines for enthusiasts worldwide. Perfectly blending efficiency and mobility, it represents a new era in clean, quiet, and eco-friendly marine propulsion.

Performance and Range*

 Half Power
250W
Full Power
500W
Sport Mode
750W
Speed
(kph / mph)
6.0 / 3.77.5 / 4.78.3 / 5.2
Max Run Time
(hh:mm)
01 : 3000 : 45**
Range
(km / miles)
9.0 / 5.65.6 / 3.5/

* The data above is for a single person driving an 8ft aluminium dinghy (total weight 117kg), in calm conditions. Range and run time may vary with different boat or load, wind and waves, etc

** Sport Mode can last up to 1 minute subject to battery SOC and temperature.

Seattle
Round Trip
18 Miles
San Francisco
Two Laps
16 Miles
New York
Round Trip
21 Miles
Miami
Round Trip
17.6 Miles

Integrated Smart Display & Battery

• Safe and Reliable
• Integrated Smart Battery Management-System for more energy-efficient operation and longer battery life

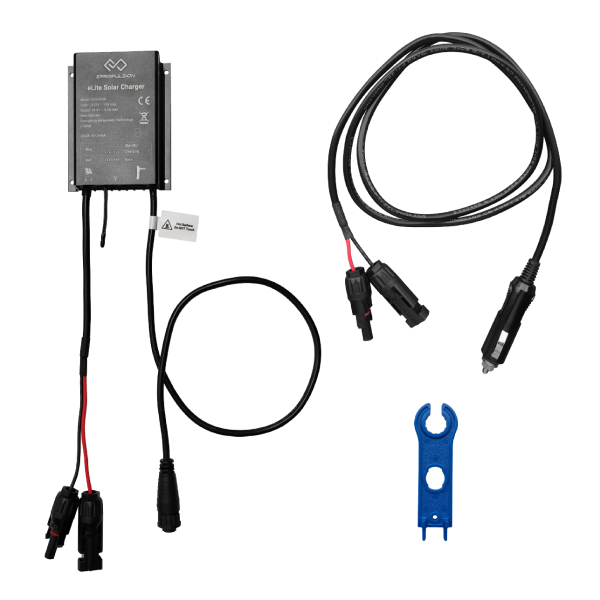

• supports multiple charging options (220V AC as standard, 12V DC and Solar with optional ePropulsion accessories)

378 Wh Capacity 25.2V Lithium-ion

High energy density in a compact size maximizes battery capacity.

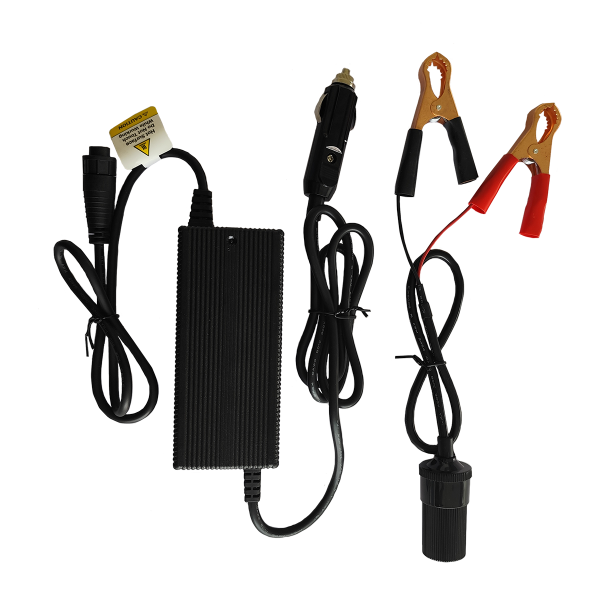

100 to 240V AC charger included, 12V charger optional

Dual power ports allow solar charging when discharging.

Designed for Portability

Spirit 1.0 Plus is easy to transport.
Integrated Smart Display & Battery
Advanced Tiller
Folding Tiller
Quick to pack and deploy your Spirit.

Digital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.
  1. Digital DisplayYou have access to real-time power, remaining runtime, battery level, operating voltage, etc.
  2. Electric StartPress one button and you're ready to go. No pulling a cord start.
  3. Magnetic Kill SwitchStop the motor in an emergency.
  4. Stepless throttle changingThe throttle hand feel is clear, smooth and enjoyable.
  5. Max Power Output AdjustmentWith max power adjustment, its safer for kids and rental boats
Spirit 1.0 Evo
Made for Sailing
Spirit 1.0 Evo Remote
Made for Remote Steering

Spirit 1.0 Evo

Two More Spirit 1.0 Models

Spirit 1.0 Evo is the higher end Spirit model with more innovative features and offer a hydro generation function.

Specs

Electric outboard motors are easy to operate and keep you informed of operation status.
Nominal Power500 W
Maximum Power (in Sport mode)750 W
BatteryIntegrated 378 Wh 25.2V Lithium-ion
Battery Life800 cycles at 80% DOD
Charger100 to 240V AC charger included, 12V charger optional
Cooling SystemNatural cooling
Rated RPM1500 to 1700
Operating Temperature-5 to 55 °C
Storage Temperature-20 to 45 °C
Trim and Tilt8° / 17° / 26°
Tilt Angle75°
Shallow Water Mode Tilt Angle36°
Steering Angle±70°
Dimensions (L x W x H)297 x 75 x 890 mm (11.7 x 3 x 35”)
Motor Weight (excluding bracket)6.7 kg / 14.7 lbs
Motor Weight (including bracket)7.9 kg / 17.4 lbs
Adjustable Shaft Length401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1”)

What's in the Box

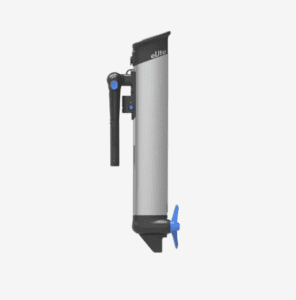

Outboard Main Part

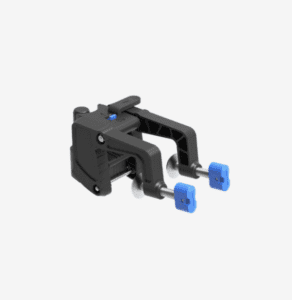

Clamp Bracket

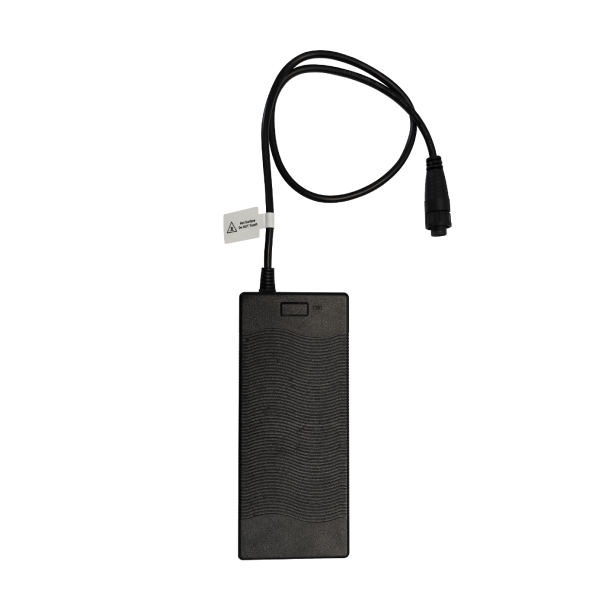

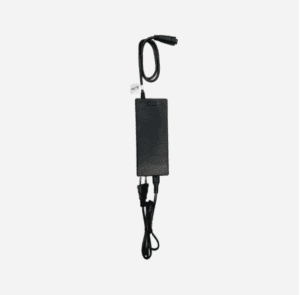

AC Charger

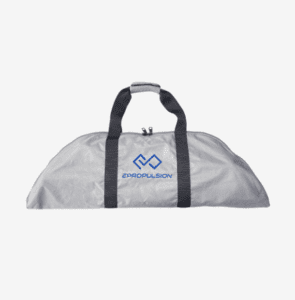

Outstanding Bag

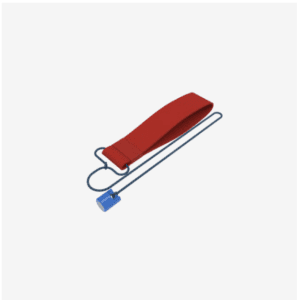

Kill Switch and Wristband

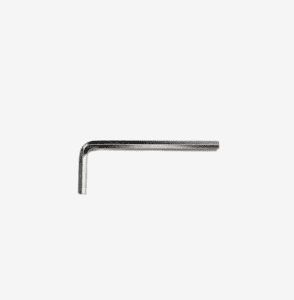

Hex Wrench

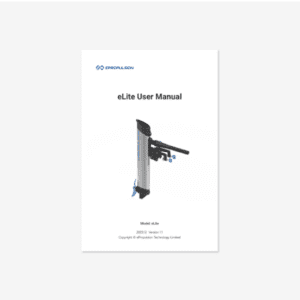

User manual including Warranty Card )

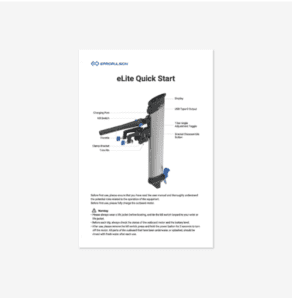

Quick Start Guide

FAQ

Yes, but an external battery power cable is required.
We recommend the ePropulsion 48V E-Series battery to extend the range.

Store the battery in the dry environment and keep the battery charge level at 60% around. Charge the battery every 3 months.


For more info, please check ePropulsion Blog: How to Find Your Shaft Length

Yes, it is designed for extensive use in the saltwater. ePropulsion uses high-quality aluminum alloy as the base material, and applies an anodizing coating along with powder coating on top of it.

For more info, please check ePropulsion Blog: How do we make an outboard corrosion-resistant

Yes, Spirit 1.0 Plus will switch off after 30 mins without operation.
