X Series
Electric Outboard Motors

Clean · Quiet · Powerful · Easy-to-Use

40kW20kW12kWNew
40KW 20KW 12KW

Introducing X Series Electric Outboard Motor

The ePropulsion X Series electric outboards are zero-emission electric propulsion system with an industry-leading powertrain efficiency of 88.2%. The X Series features a compact & fully integrated design, electric steering system, advanced driving assistance functions and connectivity service. The modular architecture not only simplifies installation but also allows for seamless integration with renewable energy sources.

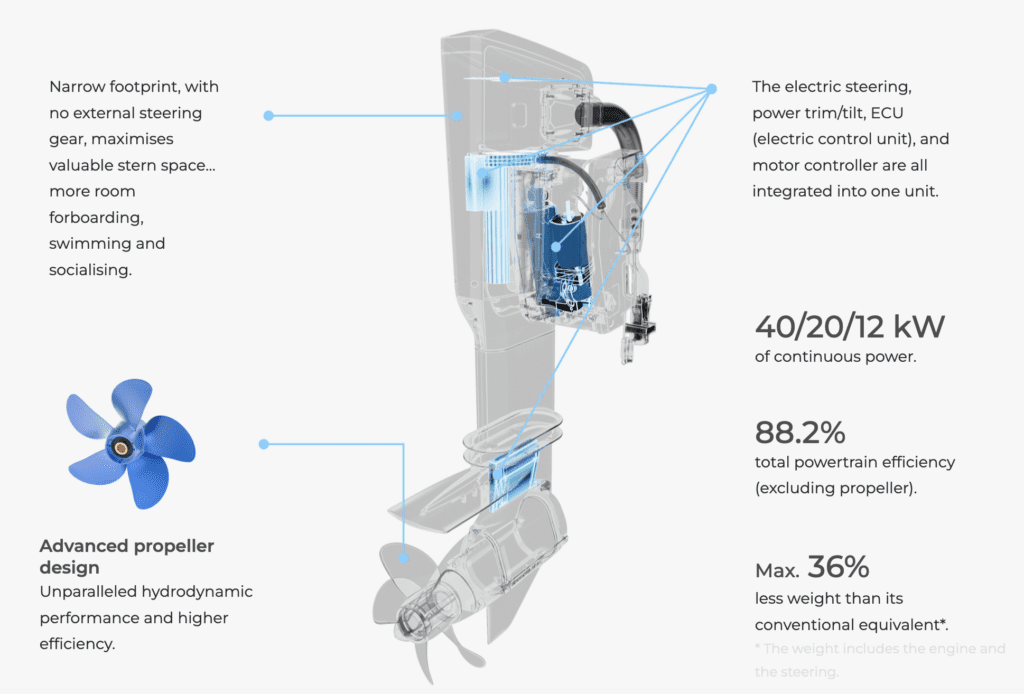

Compact & Fully Integrated Space-Saving Design

Performance and Range*

 X40X20X12
Output (kW)102040510203612
Speed (kph / mph)12.6 / 7.815.4 / 9.635.9 / 22.311 / 6.814 / 8.726 / 16.214.5 / 920.4 / 12.730.1 / 18.7
Runtime (hh:mm)4:002:001:004:002:001:003:201:400:50
Range (km/ mile)50.4 / 31.330.8 / 19.135.9 / 22.344 / 27.328 / 17.426 / 16.248.3 / 3034 / 21.125.1 / 15.6
* The X40’s performance data is based on a 20-foot V hull aluminum boat with two persons (130kg), powered by one X40 with four G102-100 batteries (total boat weight 1030kg), in calm lake water.
The X20’s performance data is based on a 14-foot V hull aluminum boat with two persons, powered by one X20 with two G102-100 batteries (total boat weight 660kg), in calm lake water.
The X12’s performance data is based on a 11-foot aluminum hull inflatable boat with one person, powered by one X12 with one G102-100 battery (total boat weight 320kg), in calm lake water.

Battery

The G102-100 battery is designed to be fully compatible with your 96V X Series electric outboard motors
• Fully Compatible with X Series
electric outboard motors
• Safe and Reliable
• High Energy Density
• Long Life Cycle

Enhanced User Experience

• Safe and Reliable
• Integrated Smart Battery Management-System for more energy-efficient operation and longer battery life
• supports multiple charging options (220V AC as standard, 12V DC and Solar with optional ePropulsion accessories)

ePropulsion Smart System Architecture (eSSA)

eSSA makes setting up an X Series system seamless and worry-free. The modular architecture supports simple and safe connection of multiple components and enables integration with renewable energy sources, enhancing the sustain ability of your boating experience.

A comprehensive range of accessories:
▪︎ Smart Throttle ▪︎ Digital Helm ▪︎ Smart Display 5″ ▪︎ Smart Display 10″ ▪︎ Propellers for different speeds or conditions ▪︎ G102-100 Battery ▪︎ MPPT Solar Charge Controller ▪︎ DC-DC Converter ▪︎ Battery Chargers with different power capacities ▪︎ More coming soon…

Connectivity

X Series motors have ePropulsion’s Connectivity Service built in. This keeps you in touch with your boat’s status in real time, including monitoring, reporting, and trip tracking functions.

Specs

Electric outboard motors are easy to operate and keep you informed of operation status.
 L ShaftXL Shaft
Motor Weight (excluding control)104 kg (220.3 lbs)106 kg (233.7 lbs)
Shaft Length508 mm (20″)635 mm (25″)
Dimensions (L x W x H)757 x 350 x 1233 mm
(29.8 x 14.2 x 48.5″)
757 x 360 x1360 mm
(29.8 x 14.2 x 53.5″)
Input Power40kW
Nominal Voltage96 VDC
Cooling SystemClosed loop liquid cooling
Rated RPM1500 to 2000
Trim and TiltPower trim & tilt
Trim / Tilt Angle-4° to 61°
SteeringIntegrated electric steering
Steering Angle±45°
Propeller15” x 10 3/4” propeller (available in L&R rotation)
13 3/8” x 16 3/4″ propeller (available in L&R rotation)
 L ShaftXL Shaft
Motor Weight (excluding control)79 kg (174.2 lbs)81 kg (178.6 lbs)
Shaft Length508 mm (20″)635 mm (25″)
Dimensions (L x W x H)674 x 360 x 1229 mm
(26.5 x 14.2 x 48.4”)
674 x 360 x 1356 mm
(26.5 x 14.2 x 53.4”)
Input Power20kW
Nominal Voltage96 VDC
Cooling SystemNatural cooling
Rated RPM1200 to 1800
Trim and TiltPower trim & tilt
Trim / Tilt Angle-4° to 61°
SteeringIntegrated electric steering
Steering Angle±45°
Propeller15” x 10 3/4” propeller (available in L&R rotation)
13 3/8” x 16 3/4″ propeller (available in L&R rotation)
 S ShaftL Shaft
Motor Weight (excluding control)48 kg (105.8 lbs)50 kg (110.2 lbs)
Shaft Length381 mm (15”)508 mm (20”)
Dimensions (L x W x H)560 x 266 x 978 mm
(22 x 10.5 x 38.5”)
560 x 266 x 1105 mm
(22 x 10.5 x 43.5”)
Input Power12kW
Nominal Voltage96 VDC
Cooling SystemNatural cooling
Rated RPM1100 to 2000
Trim and TiltPower trim & tilt
Trim / Tilt Angle-4° to 61°
SteeringIntegrated electric steering
Steering Angle±45°
Propeller11 13/16” x 10 5/8” propeller (available in L&R rotation)
11 7/16” x 14 3/16” propeller (available in R rotation)

What's in the Box

Accessories:

▪︎ Smart Throttle
▪︎ Digital Helm
▪︎ Smart Display 5″
▪︎ Smart Display 10″
▪︎ Propellers for different speeds or conditions
▪︎ G102-100 Battery
▪︎ MPPT Solar Charge Controller
▪︎ DC-DC Converter
▪︎ Battery Chargers with different power capacities
▪︎ More coming soon…

FAQ

The G102-100 battery is designed to be fully compatible with your 96V X Series electric outboard motors

Yes, it is designed for extensive use in saltwater. The high-quality aluminum alloy as the base material, anodizing coating, and powder coating help prevent deterioration.

  • The X20/X40 15” x 10 ¾” RH – Suitable for heavier boats at lower (displacement) speeds. Right hand rotation.
  • The X20/X40 Propeller 15” x 10 3/4” LH – Suitable for heavier boats at lower speeds, left hand rotation. For use in twin or multiple motor installations.
  • The X20/X40 Propeller 13 3/8” x 16 3/4″ RH – Suitable for lighter boats at higher (often planing) speeds. Right hand rotation.
  • The X20/X40 Propeller 13 3/8” x 16 3/4″ LH – Suitable for lighter boats at higher speeds, left hand rotation. For use in twin or multiple motor installations.
  • L – 104kg or roughly 229lbs
  • XL – 106kg or roughly 234lbs
  • L: 757 mm x 360 mm x 1233 mm or roughly 29.8in x 14.2in x 48.54in
  • XL: 757 mm x 360 mm x 1360 mm or roughly 29.8in x 14.2in x 53.54in
  • X40 – closed loop cooling
  • X20 – natural cooling
  • X12 – natural cooling
  • X40 – 1500-2100
  • X20 – 1200-1800
  • X12 – 1100-2000
